Double IV Poles
Ambulance- & Emergency Stretcher
All data for the availability and technical equipment take place without guarantee.
Our product examples

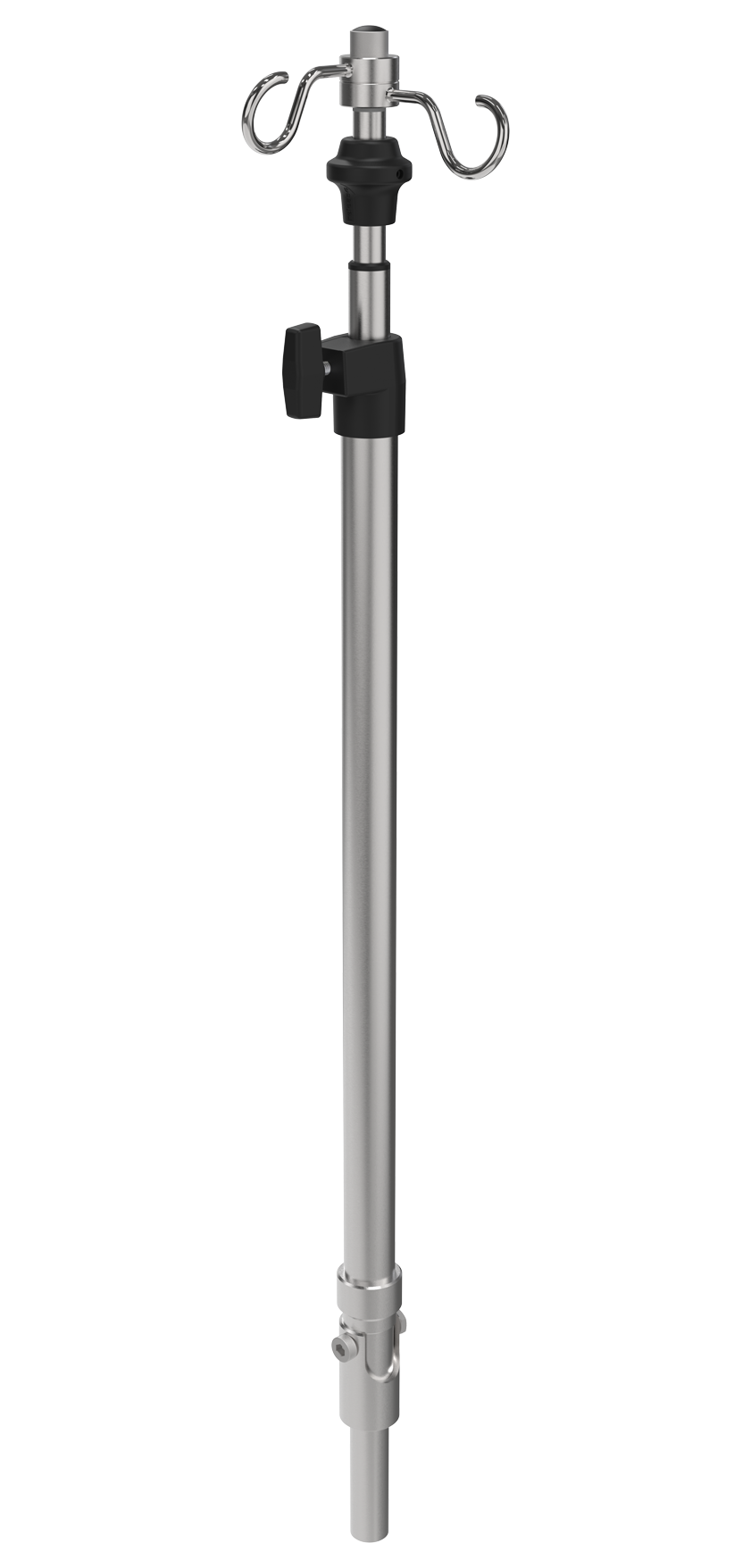

Foldable Pole
Material of tube: Stainless steel
Regulating range: 660mm - 1.292mm
Inner tube 1 diameter Ø: 14mm
Inner tube 2 diameter Ø: 18mm
Outer tube diameter Ø: 25mm
Material of Bottle holder: Stainless steel
Number of hooks: 2
Adapter Ø: 19,5mm
Adjustment: Two-way regulation
Color: Graphite black
Load capacity per hook: 2kg
Total load capacity: 6kg

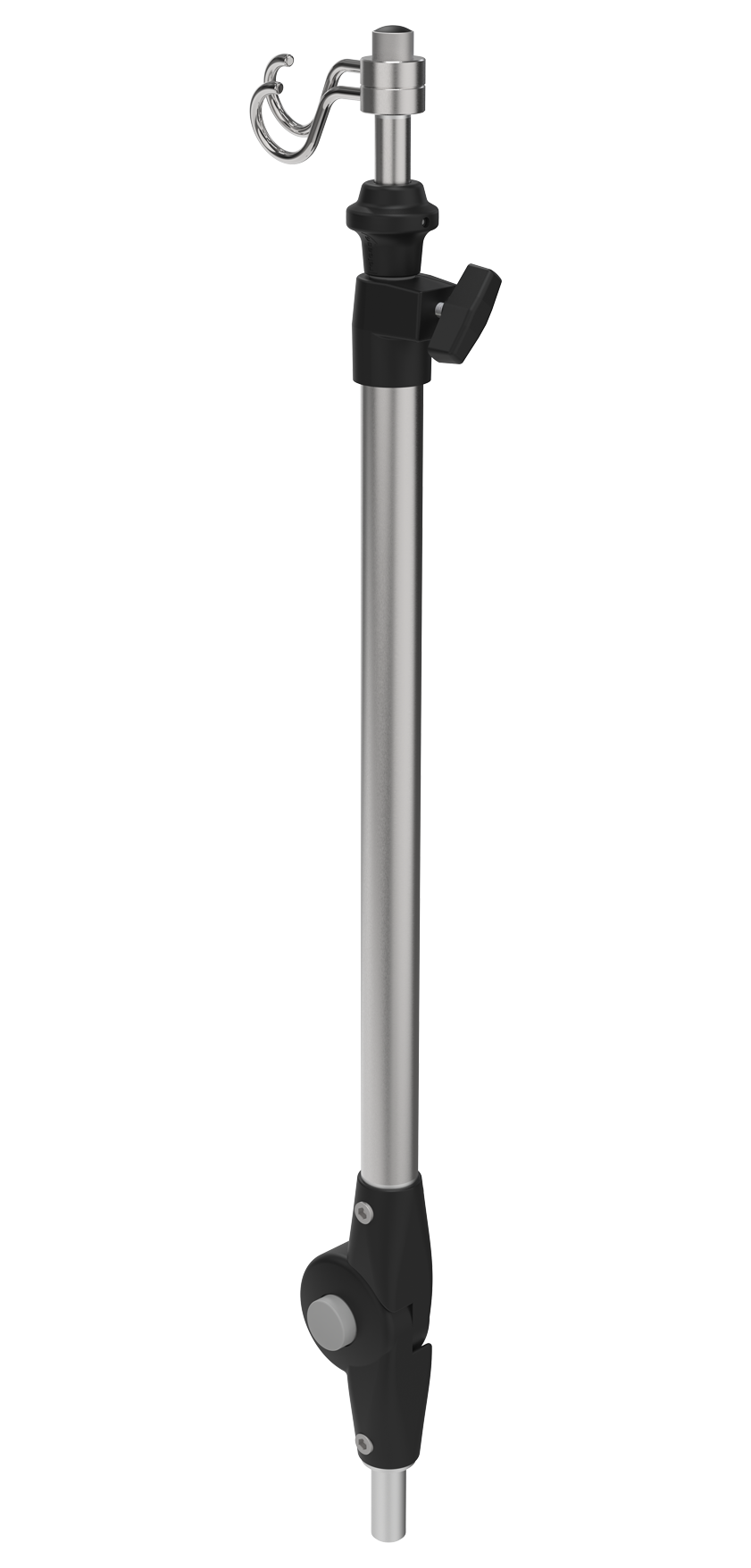

Glued adapter
Material of tube: Stainless steel
Regulating range: 760mm - 1.691mm
Inner tube 1 diameter Ø: 14mm
Inner tube 2 diameter Ø: 18mm
Outer tube diameter Ø: 25mm
Material of Bottle holder: Stainless steel
Number of hooks: 3
Adapter Ø: 20mm
Adjustment: Two-way regulation
Color: Light-grey
Load capacity per hook: 2kg
Total load capacity: 6kg

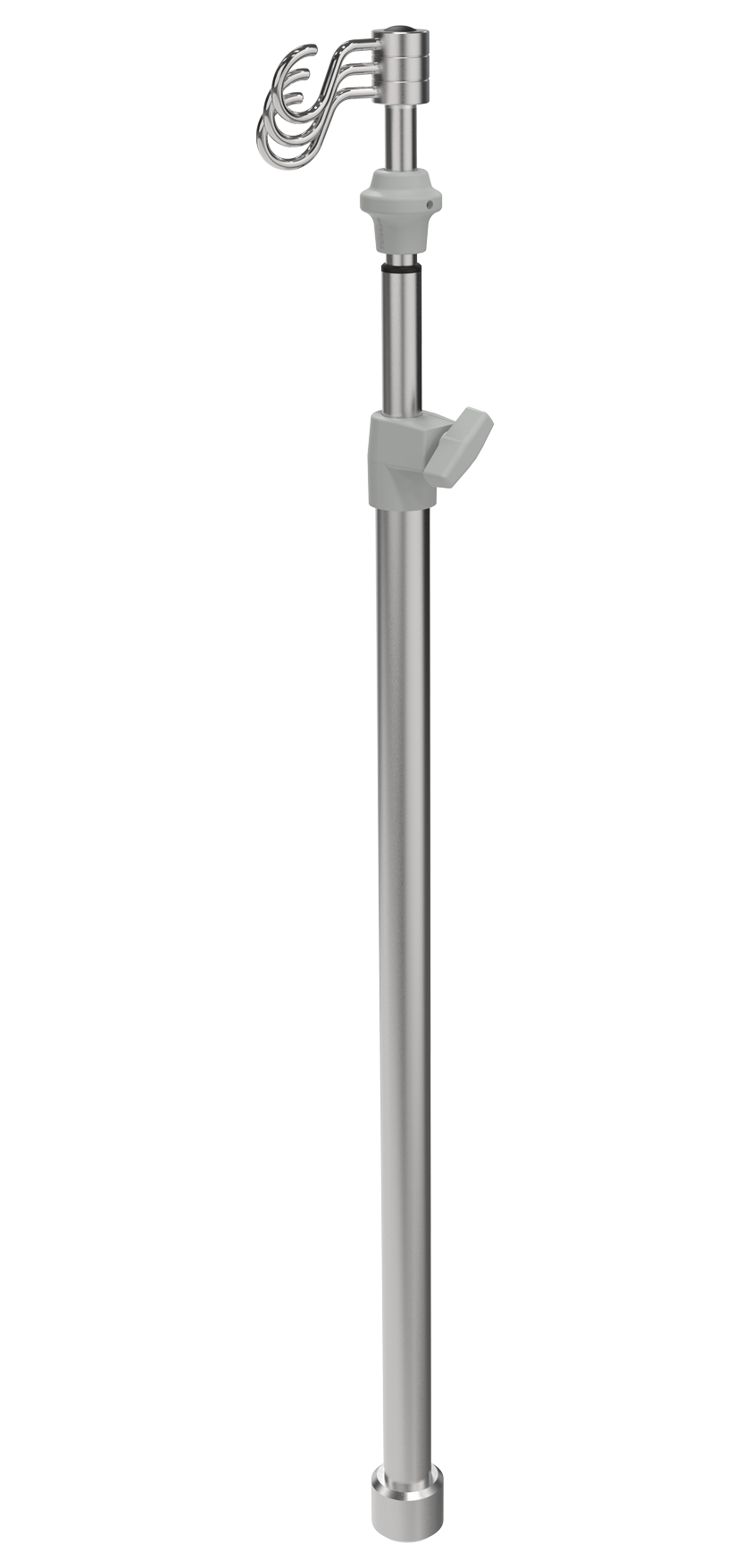

Screw-mounted pole
Material of tube: Stainless steel
Regulating range: 599mm - 1.255mm
Inner tube 1 diameter Ø: 14mm
Inner tube 2 diameter Ø: 18mm
Outer tube diameter Ø: 25mm
Material of Bottle holder: Stainless steel
Number of hooks: 3
Wrench size: 21mm (M14)
Adjustment: Two-way regulation
Color: Graphite black
Load capacity per hook: 2kg
Total load capacity: 6kg

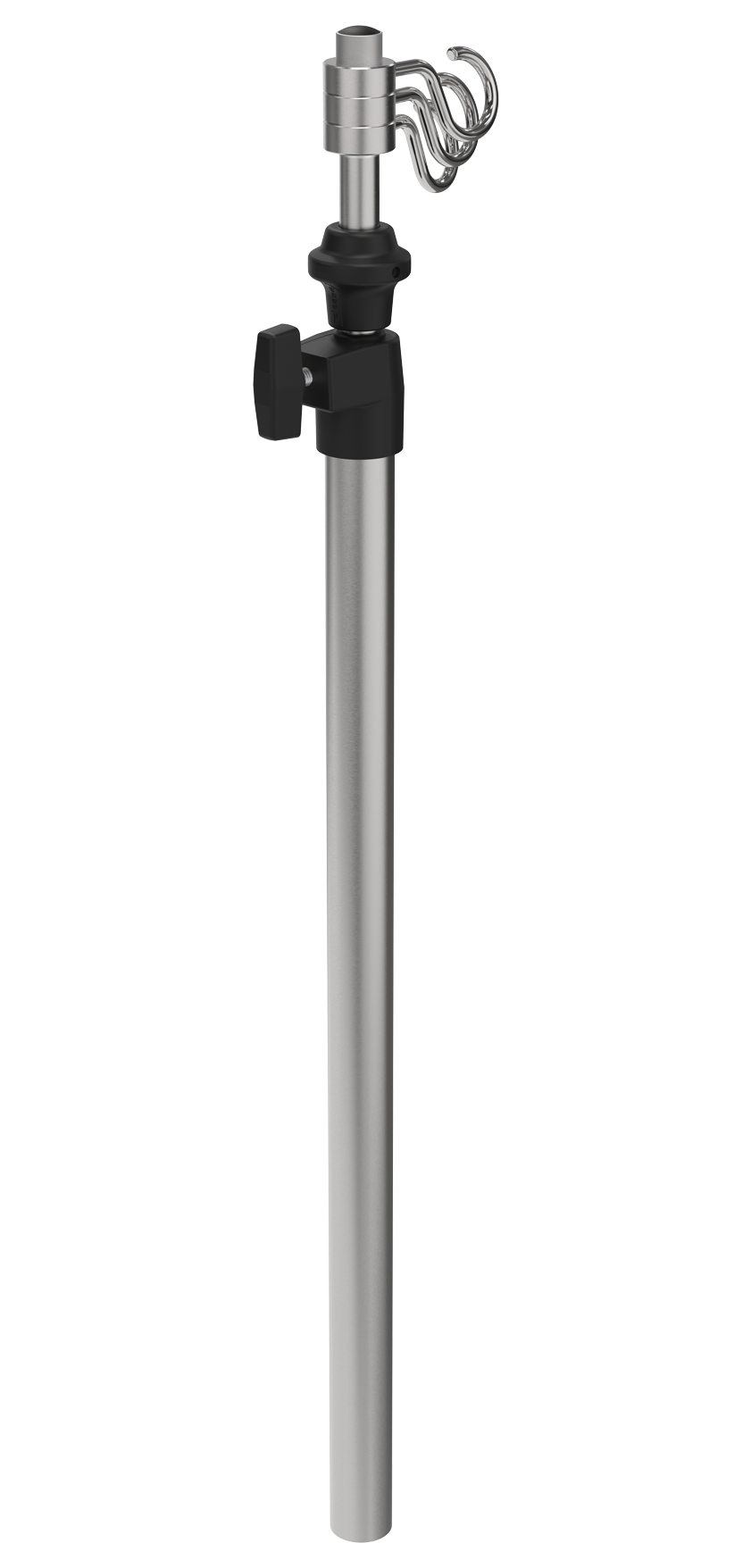

Quick-release fastening pole
Material of tube: Stainless steel
Regulating range: 760mm - 1.691mm
Inner tube 1 diameter Ø: 14mm
Inner tube 2 diameter Ø: 18mm
Outer tube diameter Ø: 25mm
Material of Bottle holder: Stainless steel
Number of hooks: 2
Adapter Ø: 21,9mm
Adjustment: Two-way regulation
Color: Graphite black
Load capacity per hook: 2kg
Total load capacity: 6kg
